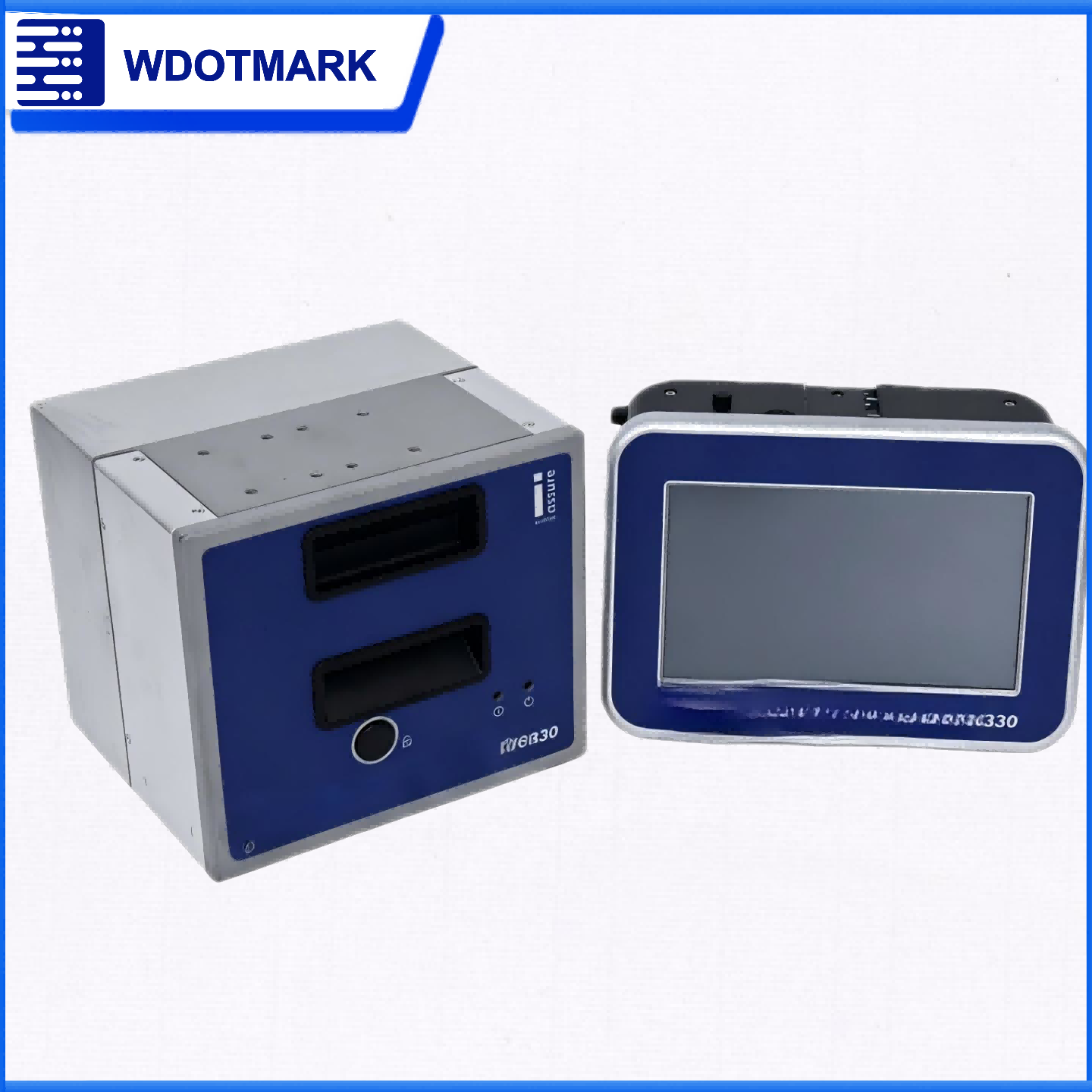

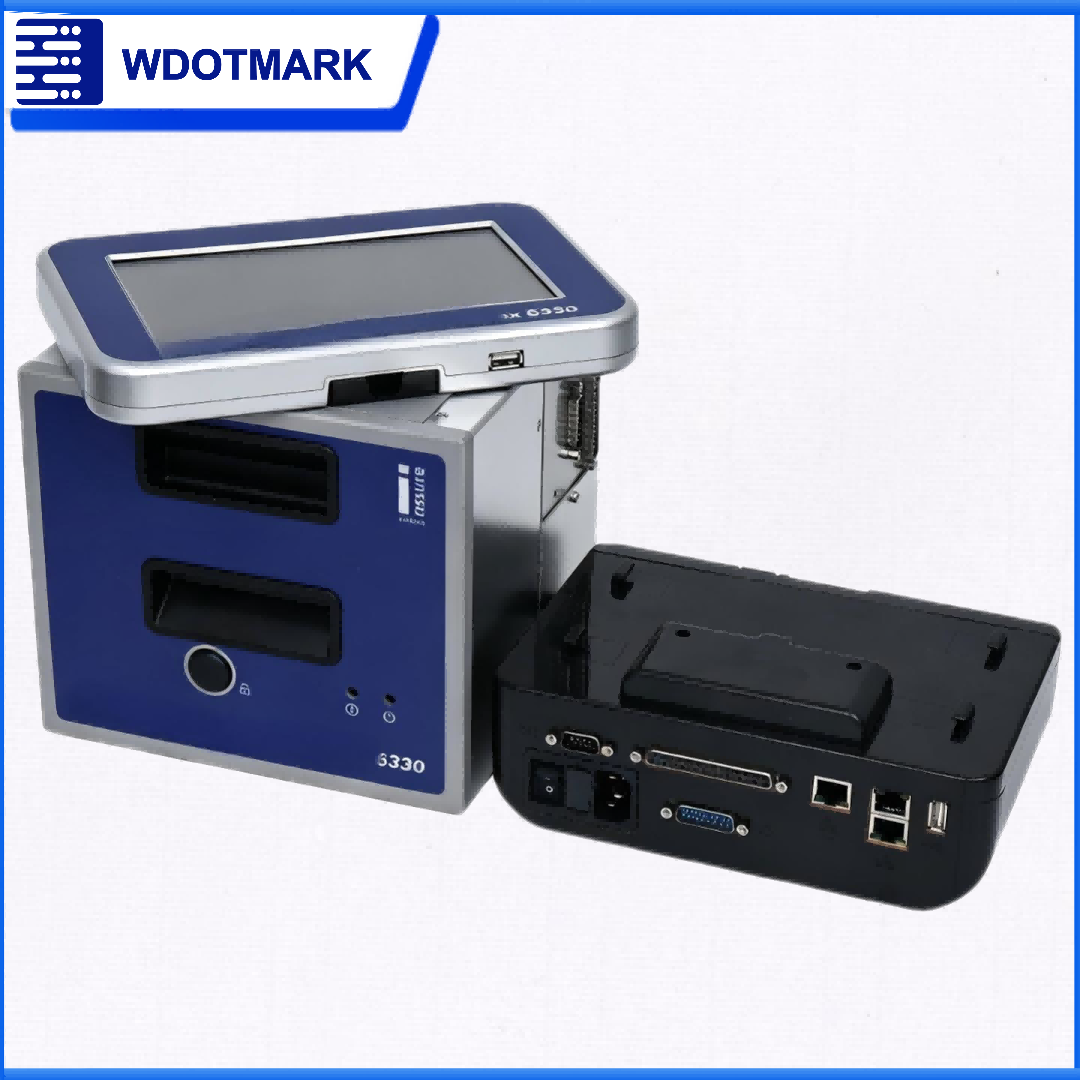

Videojet 6330 Thermal Transfer Overprinter
Built to withstand tough production lines with iAssure code quality checking
Videojet 6330 Thermal Transfer Overprinter
Built to withstand tough production lines with iAssure code quality checking
- iAssure built-in code quality checker, no extra hardware
- Airless Videojet Intelligent Motion technology
- Up to 750 mm/s print speed, 250 ppm
- Up to 1,200 m ribbon capacity
- Fast cassette change design
- 32 mm & 53 mm printhead options
Built around the application.
The Videojet DataFlex 6330 thermal transfer overprinter is built to withstand tough production line environments. It features built-in iAssure code quality checking to reduce waste and rework, print speeds up to 750 mm/s and throughput up to 250 prints per minute, available with 32 mm and 53 mm printheads.
Videojet DataFlex 6330 TTO printer with iAssure code quality checking, up to 750 mm/s and 250 ppm. 32/53 mm printheads, up to 1,200 m ribbon. Request a quote from WDOTMARK.
Specifications
- Printhead
- 32 mm or 53 mm, 300 dpi (12 dots/mm)
- Print area (continuous)
- Up to 32×200 mm / 53×200 mm
- Print area (intermittent)
- Up to 32×75 mm / 53×75 mm
- Max print speed
- 750 mm/s
- Max throughput
- Up to 250 prints/min
- Max ribbon length
- 1200 m
- Ribbon width
- 20–33 mm (32 mm), 20–55 mm (53 mm)
- Bar codes
- EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS, DataMatrix, QR
- Power supply
- 100–240 VAC
- Operating temperature
- 0–40 °C
Where this model is used
Common problems this machine solves
Codes need to stay readable on flexible packaging
This machine is built for marking on Flexible Packaging. We match the ink, ribbon or laser source to your material so codes stay durable and readable.
The production line runs faster than the coder
Rated for Max print speed:750 mm/s.
Frequent stops for cleaning or consumable changes
Airless Videojet Intelligent Motion technology.
Frequently asked questions
What is TTO and how does it work?
A thermal transfer overprinter uses a heated printhead to transfer ink from a ribbon directly onto flexible film, labels or pouches, producing crisp, high-resolution codes.
Does it require ribbon, and which type?
Yes — TTO uses a ribbon. Wax, wax-resin or resin ribbons are chosen according to the substrate and required resistance.
Does it need compressed air?
No — this model operates without plant air, which simplifies installation.
How do I reduce ribbon waste?
Use the ribbon-saving modes and choose a machine with long ribbon capacity so the ribbon is advanced only as far as needed.
Does it support intermittent and continuous printing?
Per the specification, Print area (continuous):Up to 32×200 mm / 53×200 mm.
Do you provide compliance documentation?
Contact us for compliance documentation and certificates for your region.
How do I get a quote or a sample test?
Send your material, mark content and line speed through the inquiry form. We will confirm the configuration, test on your sample and provide a quote.
Discuss this product with WDOTMARK.
Share product photos, material details, marking content and production information for review.
