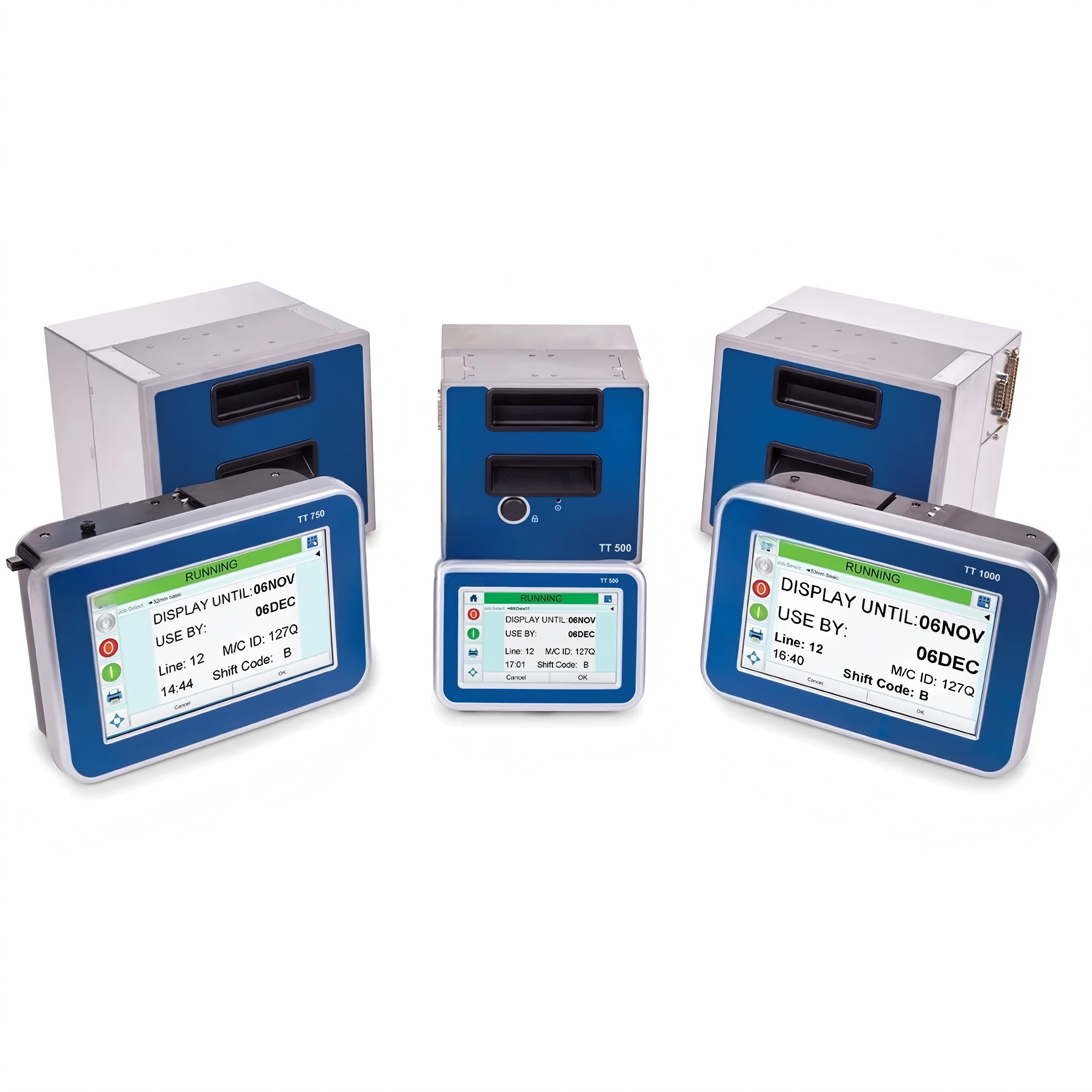

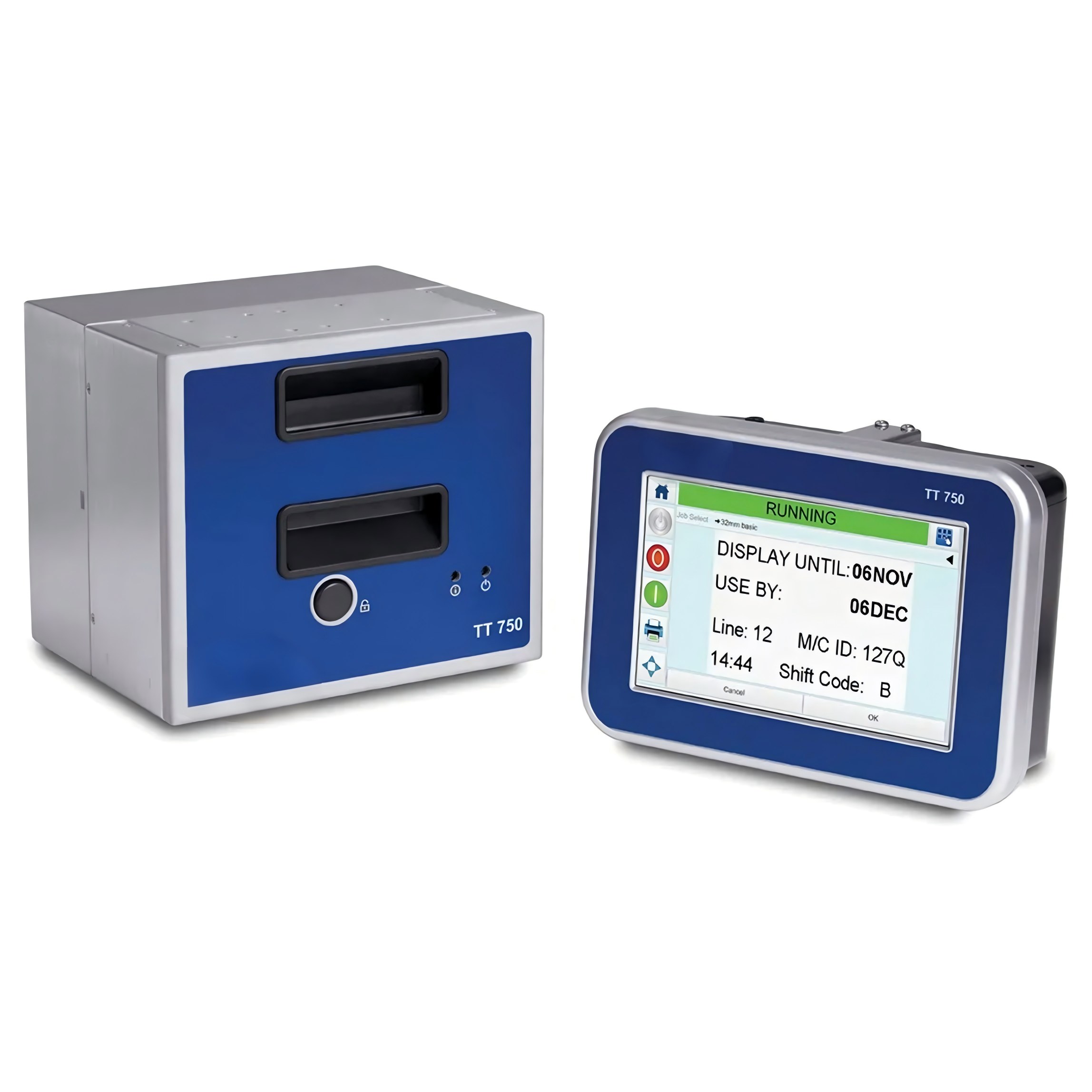

Linx TT750 Thermal Transfer Overprinter
Mid-range TTO with 300 dpi printheads and up to 1,200 m ribbon
Linx TT750 Thermal Transfer Overprinter
Mid-range TTO with 300 dpi printheads and up to 1,200 m ribbon
- Operates without compressed air
- Up to 250 prints/min, 750 mm/s
- 32 mm & 53 mm 300 dpi printheads
- Up to 1,200 m ribbon
- 8-inch touchscreen with WYSIWYG preview
- 3 ribbon saving modes
Built around the application.
The Linx TT750 thermal transfer overprinter delivers consistent, error-free coding on flexible packaging with 300 dpi printheads in 32 mm and 53 mm widths. It prints at up to 750 mm/s with a choice of three ribbon saving modes and up to 1,200 m ribbon.
Linx TT750 TTO printer with 32/53 mm 300 dpi printheads, up to 750 mm/s and 250 prints/min. 1,200 m ribbon, 8-inch touchscreen. Codes flexible packaging. Request a quote from WDOTMARK.
Specifications
- Printhead
- 32 mm or 53 mm, 300 dpi (12 dots/mm)
- Print area (intermittent)
- Up to 32×75 mm / 53×75 mm
- Print area (continuous)
- Up to 32×200 mm / 53×200 mm
- Max throughput
- 250 prints/min
- Max print speed
- 750 mm/s
- Max ribbon length
- 1200 m
- Ribbon width
- 20–35 mm (32 mm), 20–55 mm (53 mm)
- Bar codes
- EAN-8, EAN-13, UPC-A, UPC-E, Code 39, EAN128, Code 128, ITF, PDF417, Data Matrix, QR, RSS
- Power supply
- 100–240 VAC, 50/60 Hz
- Operating temperature
- 0–40 °C
Where this model is used
Common problems this machine solves
Codes need to stay readable on flexible packaging
This machine is built for marking on Flexible Packaging. We match the ink, ribbon or laser source to your material so codes stay durable and readable.
The production line runs faster than the coder
Rated for Max throughput:250 prints/min.
Frequent stops for cleaning or consumable changes
8-inch touchscreen with WYSIWYG preview.
Frequently asked questions
What is TTO and how does it work?
A thermal transfer overprinter uses a heated printhead to transfer ink from a ribbon directly onto flexible film, labels or pouches, producing crisp, high-resolution codes.
Does it require ribbon, and which type?
Yes — TTO uses a ribbon. Wax, wax-resin or resin ribbons are chosen according to the substrate and required resistance.
Does it need compressed air?
No — this model operates without plant air, which simplifies installation.
How do I reduce ribbon waste?
Use the ribbon-saving modes and choose a machine with long ribbon capacity so the ribbon is advanced only as far as needed.
Does it support intermittent and continuous printing?
Per the specification, Print area (intermittent):Up to 32×75 mm / 53×75 mm.
Do you provide compliance documentation?
Contact us for compliance documentation and certificates for your region.
How do I get a quote or a sample test?
Send your material, mark content and line speed through the inquiry form. We will confirm the configuration, test on your sample and provide a quote.
