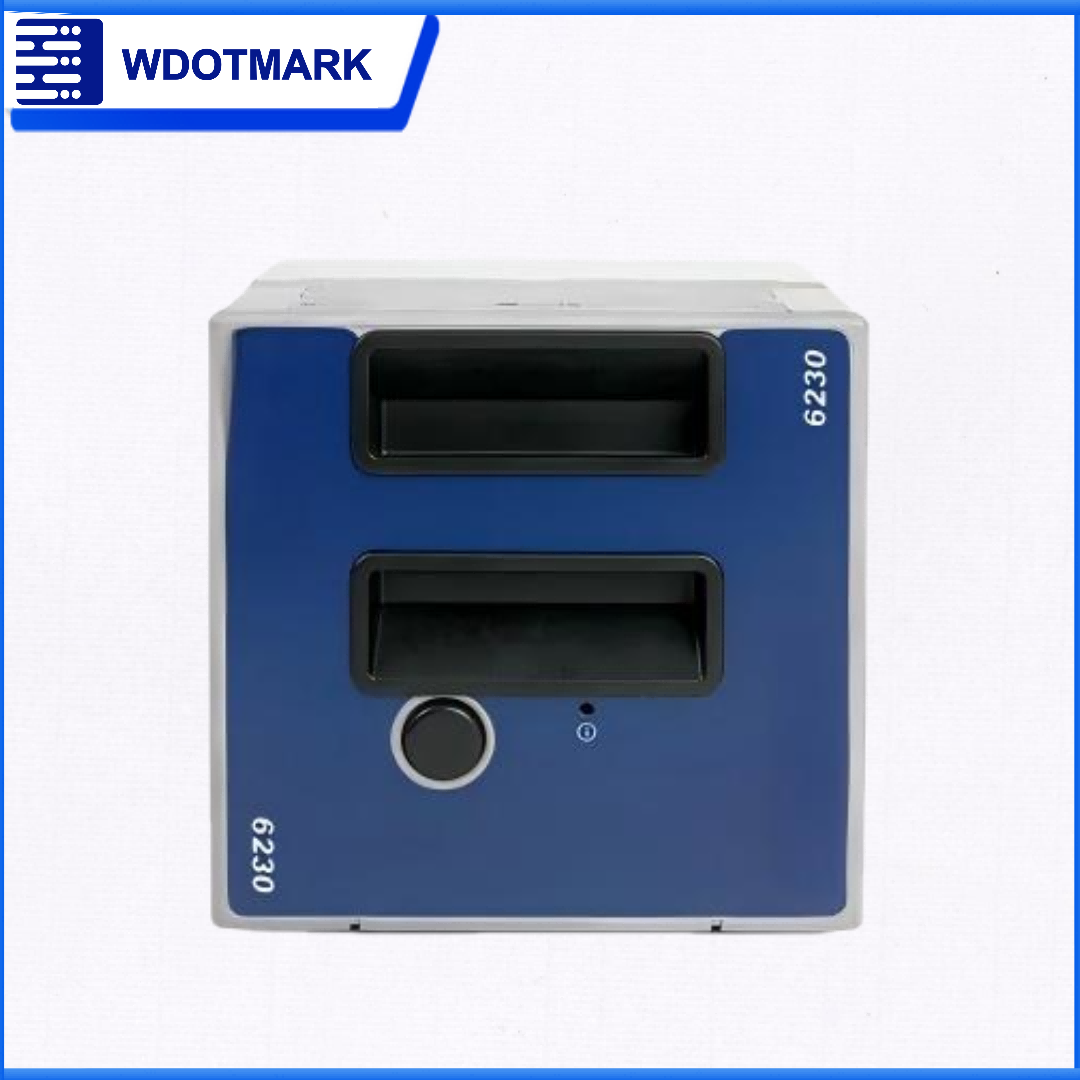

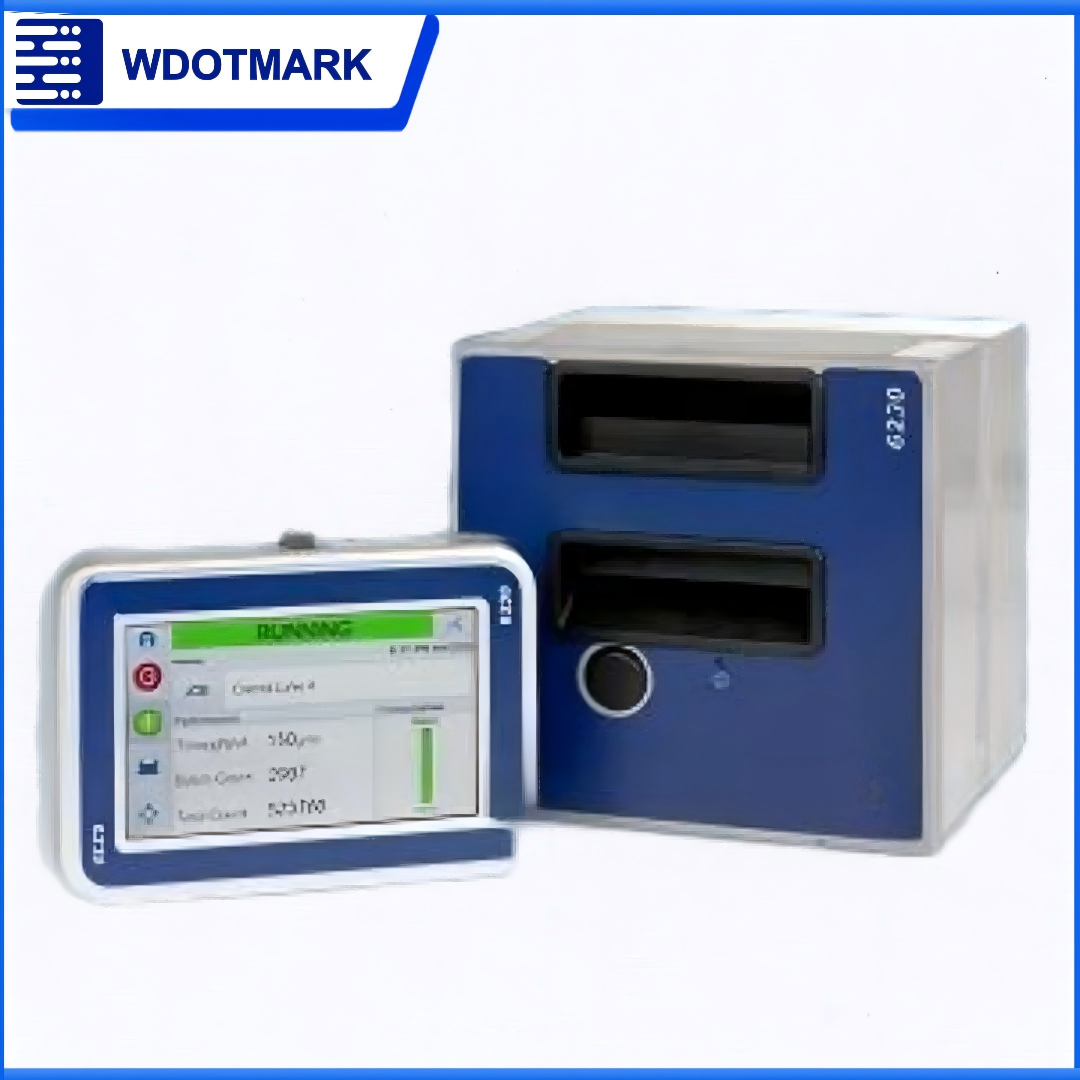

Videojet 6230 Thermal Transfer Overprinter
Reliable TTO with built-in Code Assurance for flexible packaging
Videojet 6230 Thermal Transfer Overprinter
Reliable TTO with built-in Code Assurance for flexible packaging
- Airless operation – no plant air required
- Built-in Code Assurance reduces coding errors
- Up to 150 packs/min
- Intermittent & continuous printing in one machine
- Easy-change ribbon cassette
- 700 m ribbon length
Built around the application.
The Videojet 6230 thermal transfer overprinter delivers easy usability with built-in Code Assurance to help reduce costly coding errors when marking onto flexible packaging. Its airless design removes the need for plant air, while a single printhead supports both intermittent and continuous printing at up to 150 packs per minute.
Videojet 6230 TTO printer with built-in Code Assurance, airless operation and up to 150 packs/min for flexible packaging coding. 32 mm printhead, 700 m ribbon. Request a quote from WDOTMARK.
Specifications
- Printhead
- 32 mm, 200 dpi (8 dots/mm)
- Print area (continuous)
- Max 32×100 mm
- Print area (intermittent)
- Max 32×47 mm
- Print speed (intermittent)
- 50–300 mm/s
- Print speed (continuous)
- 40–500 mm/s
- Ribbon length
- 700 m max
- Ribbon width
- 20–33 mm
- Bar codes
- EAN8, EAN13, UPCA, UPCE, QR
- Power supply
- 100–240 VAC, 50/60 Hz
- Operating temperature
- 0–40 °C
Where this model is used
Common problems this machine solves
Codes need to stay readable on flexible packaging
This machine is built for marking on Flexible Packaging. We match the ink, ribbon or laser source to your material so codes stay durable and readable.
The production line runs faster than the coder
Rated for Print speed (intermittent):50–300 mm/s.
Frequent stops for cleaning or consumable changes
Airless operation – no plant air required.
Frequently asked questions
What is TTO and how does it work?
A thermal transfer overprinter uses a heated printhead to transfer ink from a ribbon directly onto flexible film, labels or pouches, producing crisp, high-resolution codes.
Does it require ribbon, and which type?
Yes — TTO uses a ribbon. Wax, wax-resin or resin ribbons are chosen according to the substrate and required resistance.
Does it need compressed air?
No — this model operates without plant air, which simplifies installation.
How do I reduce ribbon waste?
Use the ribbon-saving modes and choose a machine with long ribbon capacity so the ribbon is advanced only as far as needed.
Does it support intermittent and continuous printing?
Per the specification, Print area (continuous):Max 32×100 mm.
Do you provide compliance documentation?
Contact us for compliance documentation and certificates for your region.
How do I get a quote or a sample test?
Send your material, mark content and line speed through the inquiry form. We will confirm the configuration, test on your sample and provide a quote.
Discuss this product with WDOTMARK.
Share product photos, material details, marking content and production information for review.
