CCD UV Laser Marking Machine T-U5
CCD vision-guided UV laser for high-precision cold marking
CCD UV Laser Marking Machine T-U5
CCD vision-guided UV laser for high-precision cold marking

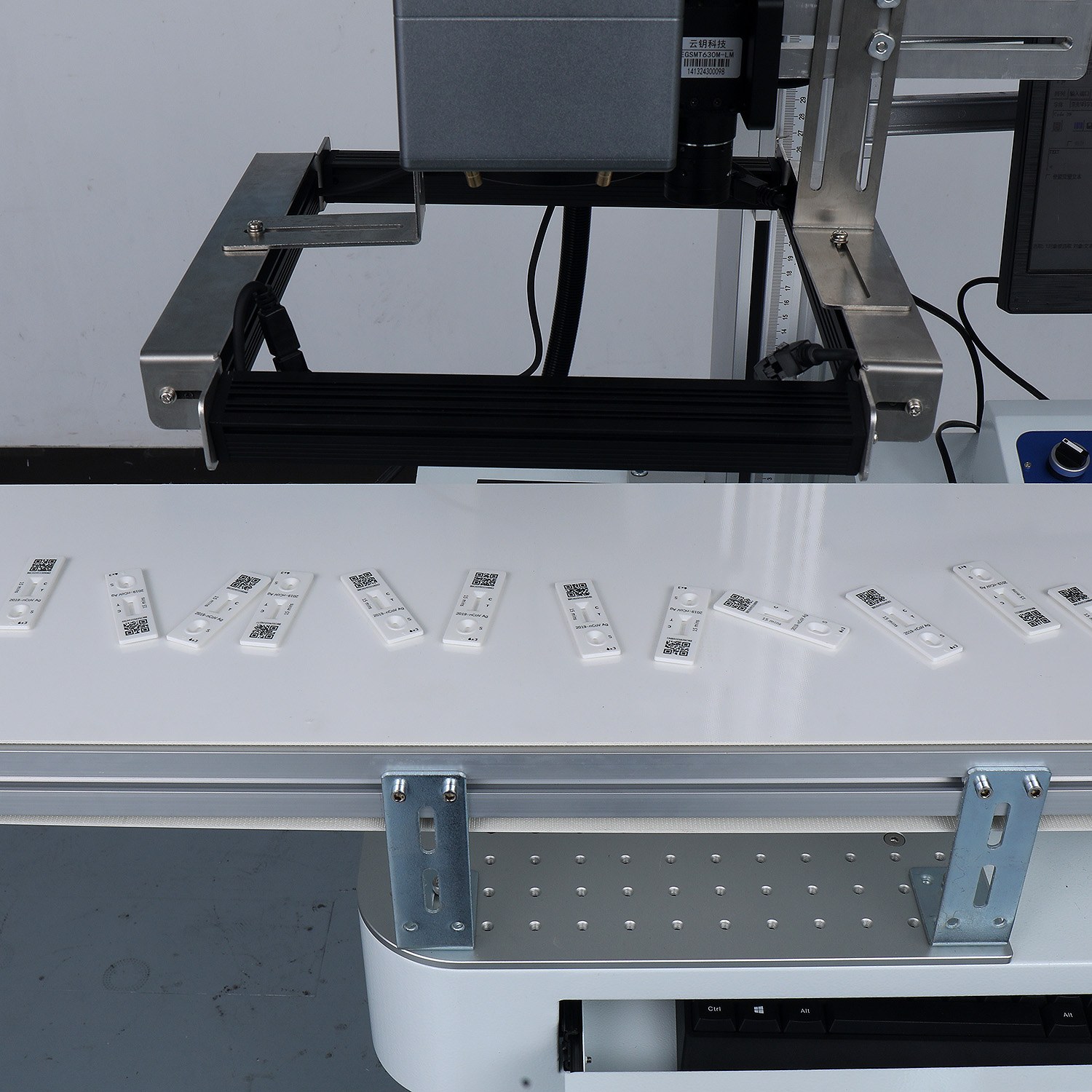

- CCD marking system with visual positioning
- JPT UV laser, 30,000+ hours service life
- Water cooling
- 19-inch computer mainframe (4G+64G)
- EZCAD 2 + CCD marking software
Built around the application.
The T-U5/T-U10 CCD UV laser marking machine pairs CCD visual positioning with a JPT UV laser for high-precision cold marking. It suits heat-sensitive materials and applications requiring fine detail.
CCD vision-guided UV laser marking machine with 5W/10W options, 355 nm wavelength and water cooling. High-precision cold marking. Request a quote from WDOTMARK.
Specifications
- Laser wavelength
- 355 nm
- Output power
- 5 W / 10 W
- Marking speed
- ≤7000 mm/s
- Marking range
- 200×200 mm (optional)
- Minimum linewidth
- 0.012 mm
- Max marking depth
- ≤0.4 mm
- Repetition accuracy
- 0.003 mm
- Galvo scanner
- JWTK GTB 10MM, 355 nm
Where this model is used
Common problems this machine solves
Codes need to stay readable on metal, aluminum, stainless steel, copper
This machine is built for marking on Metal, Aluminum, Stainless Steel, Copper. We match the ink, ribbon or laser source to your material so codes stay durable and readable.
The production line runs faster than the coder
Rated for Marking speed:≤7000 mm/s.
Frequent stops for cleaning or consumable changes
Water cooling.
Frequently asked questions
Which laser do I need — fiber, UV or CO2?
It depends on the material. Fiber (1064 nm) marks metals and many plastics, CO2 (10.6 μm) suits wood, paper and some plastics, and UV (355 nm) cold-marks heat-sensitive films and components.
Does it need ink or ribbon?
No — laser marking is permanent and consumable-free, so there is no ink, solvent or ribbon to replace.
Can it mark heat-sensitive materials?
Yes — UV laser marking (355 nm) is a cold-marking process with minimal heat, making it suitable for heat-sensitive plastics, films and components.
What materials can this model mark?
It is suited to Metal, Aluminum, Stainless Steel, Copper, PP, PVC, HDPE, Plastics. Send a sample and we will confirm the right wavelength and settings.
Is the machine certified?
Yes — WDOTMARK laser marking machines are CE and RoHS certified. Contact us if you need the certificates for your region.
How do I get a quote or a sample test?
Send your material, mark content and line speed through the inquiry form. We will confirm the configuration, test on your sample and provide a quote.
