Mopa Fiber Laser Marking Machine JPT 100W
$2,999.00

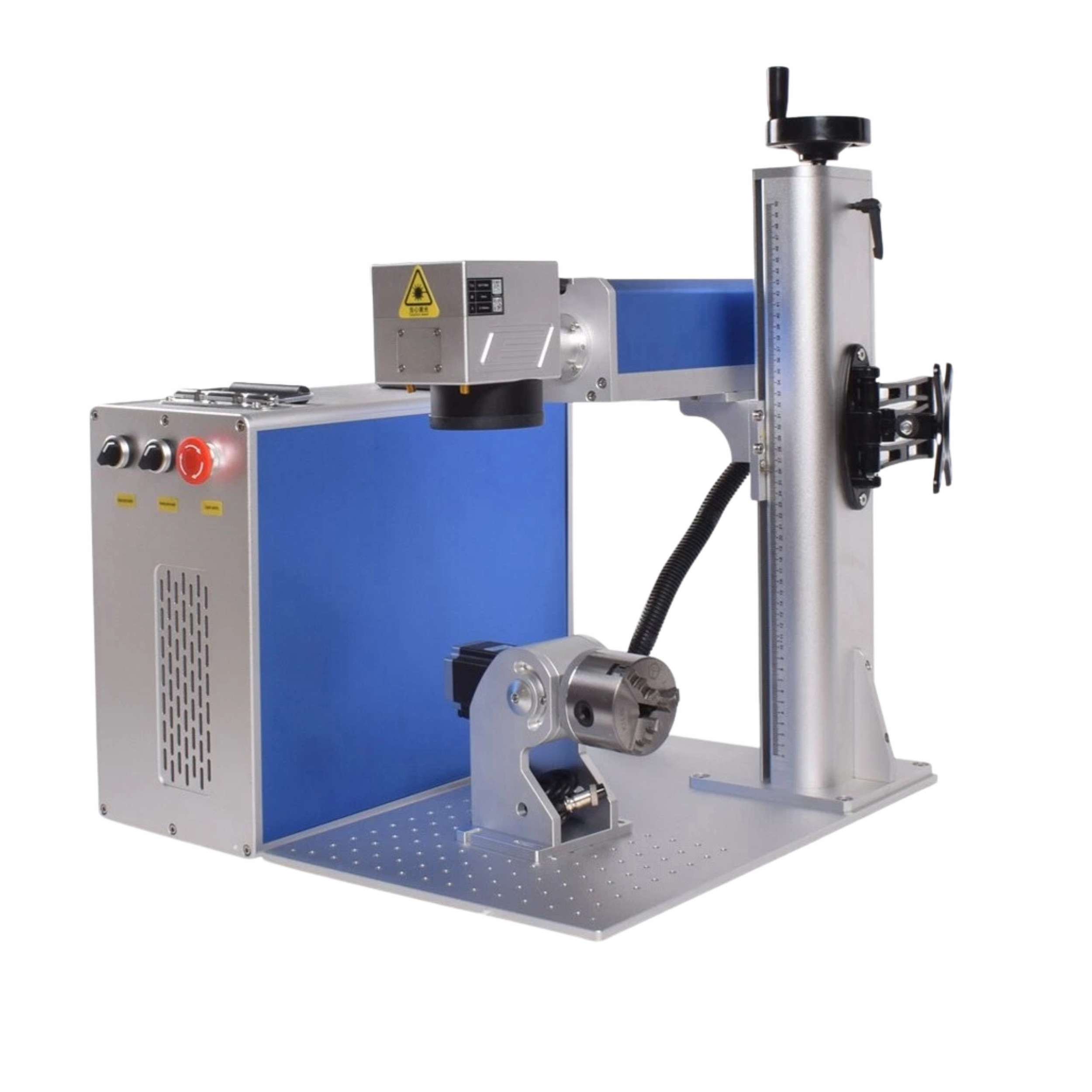

WDOTMARK MOPA Fiber Laser Marking Machine for Metal Plastic
JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.
Product Description:
1. Core Laser Configuration
Equipped with JPT Mopa M7 series laser source (YDFLP-E2-100-M7-M-R), power over 100W, supports color marking on stainless steel.
2. High-Precision Optical System
Adopts SINO-GALVO SG7110 & 10C series 2D scanning galvanometer with high speed, high precision and low drift. Controlled by BJJCZ mainboard for stable motion control and fast laser response.
3. Multi-Function & High Performance
Suitable for multiple applications including derusting, cutting, welding and engraving. Supports ultra-fine marking from 0.001–0.01mm, with a maximum speed up to 2600mm/s.
4. User-Friendly Design
Built with scale ruler, rotary handle and dual red-dot positioning for easy focusing and adjustment. Sturdy working table compatible with various workpieces.
5. Software & Standard Package
Compatible with Ezcad2 (Windows XP/7/8/10) and LightBurn software. Supports barcodes, vector files, bitmap files and dozens of common formats. Standard package includes main unit, laser source, goggles, cables, foot switch, U-disk with software, etc. 80D rotary axis is optional.
Product Features:
| Fiber Laser Source Model | JPT MOPA M760W YDFLP-E2-60-M7-M-R |
JPT MOPA M7100W YDFLP-E2-100-M7-M-R |
JPT MOPA M7200W YDFLP-E2-200-M7-M-R |
| Power | 60W | 100W | 200W |
| Maxirum Puise Energy | 2mJ | 1.5mJ | 1.5mJ |
| Pulse Repetition Rate Range | 1~4000kHz | 1~4000kHz | 1~4000kHz |
| Controller Board | SZLI-B-V4 | SZLI-B-V4 | SZLI-B-V4 |
| Software | EzCad Lite | EzCad Lite | EzCad Lite |
| Rotary Holder | Optional | Optional | Optional |
| Galvo Brand &Model | SINO SG7110 K9 | SINO SG7110 SI | SINO SG7110 SI |
| Marking Speed | 6000mm/s | 6000mm/s | 6000mm/s |
| Marking Area | 175*175mm | 200*200mm | 200*200mm |
| Red Light Preview | YES | YES | YES |
| Double Red Dot Position | YES | YES | YES |
| Color Marking | YES | YES | YES |
| Pulse Duration | 2~500ns | 2~500ns | 2~500ns |
| Supply DC Voltage(VDC) | 24V | 24V | 48V |
| Central Emission Wavelength | 1064nm | 1064nm | 1064nm |
| Package Size | 77*75*45cm | 77*75*45cm | 77*75*45cm |
| Gross Weight about | 50-55kg | 50-55kg | 50-55kg |
| Supported Windows System | “Window 7,Window 10,Window 11” | ||
