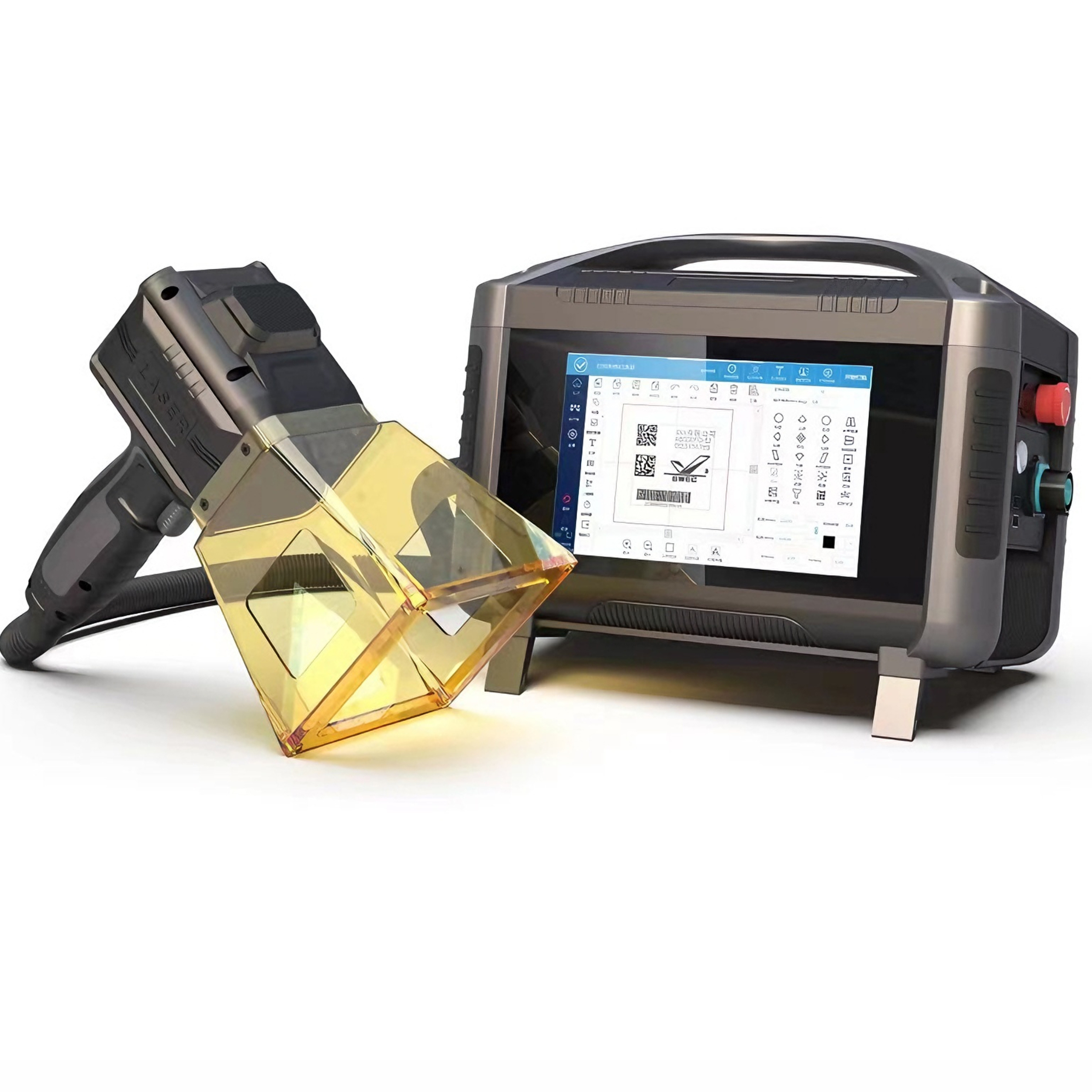

Handheld Laser Marking Machine Plug in 20W
$1,199.00
WDOTMARK Handheld Fiber Laser Marking Machine for Metal Plastic
- This handheld laser marking machine is a compact laser marking equipment developed and produced by our company, mainly to solve the marking difficulty caused by large and hard-to-move workpieces in industries such as large machinery, ships, outdoor pipelines, urban building lighting, outdoor photovoltaics, large engines, large outdoor water tanks, urban municipal administration and urban security.
- It uses a fiber laser for laser output, with red light auxiliary positioning to ensure accurate marking position.
- The machine is equipped with newly developed handheld scanning technology, which controls the swing angle of the high-speed galvanometer through professional software.
- By realizing the coordinate positioning of the laser beam, it can stably complete the marking function.
- The scanning head is ergonomically designed with a comfortable grip and easy operation, which is very suitable for on-site handheld marking of large equipment and heavy workpieces in narrow working environments.
Product Features:
| Laser source | MAX |
| Output power | 20W/30W/50W |
| Marking range | 100x100mm,150x150mm,175x175mm |
| Deflection shock mirror | High-precision two-dimensional scanning system |
| Laser wavelength | 1064mm |
| Marking speed | ≤7000mm/s |
| Operating system | Linux system |
| Marking line type | Dot matrix,vector integrated machine |
| Line width | 0.03mm |
| Repeat positioning accuracy | 0.01mm |
| Positioning method | Red light positioning and focusing |
| Number of lines of characters to beengraved | Any line within the effective marking range |
| Printing speed | 800 characters(depending on the material and printing content) |
| Font | Standard fonts for Chinese,English,numbers,Traditional Chinese,etc. |
| File format | BMP,DXF,HPGL,JPEG,PLT |
| Barcode | CODE39,CODE128,CODE126,QR |
| Power supply | 110V/220VAC,333Wh15Ah |
| Machine power consumption | ≤250W |
| Whole machine operating temperature | 0-40° |
| Overal machine weight | 5-7.0kg(plug-in version 5.5-6kg,battery version 6-7kg) |
WDOTMARK Product Range: Coding Solutions:
1. Inkjet Printing Equipment：CIJ Printer ，TIJ Printer，TTO Printer，UV Inkjet Printer，Handheld Inkjet Printer，Original and Generic ink cartridges
2. Laser Marking Machine：(Fiber ，CO2 ，UV ) Laser Marking Machine
3. Industrial Printing Solutions & Systems: Vision Positioning System
4. CIJ Printer Consumables & Spare Parts (For All Brands)：Consumables:Ink/Make-up (Solvent)/Cleaning Solutions
5. Spare parts for all brand of CIJ Printers： inkcore, keyboard, CSB, pressure sensor, nozzle, valve module ,printhead module , ETH, filter, pump, gutter pump, chip, inkcore board, empty cartridge and etc.
Contact us for product details and quotations：
WhatsApp：+8619303036632 ， Wechat：+8619303036632
