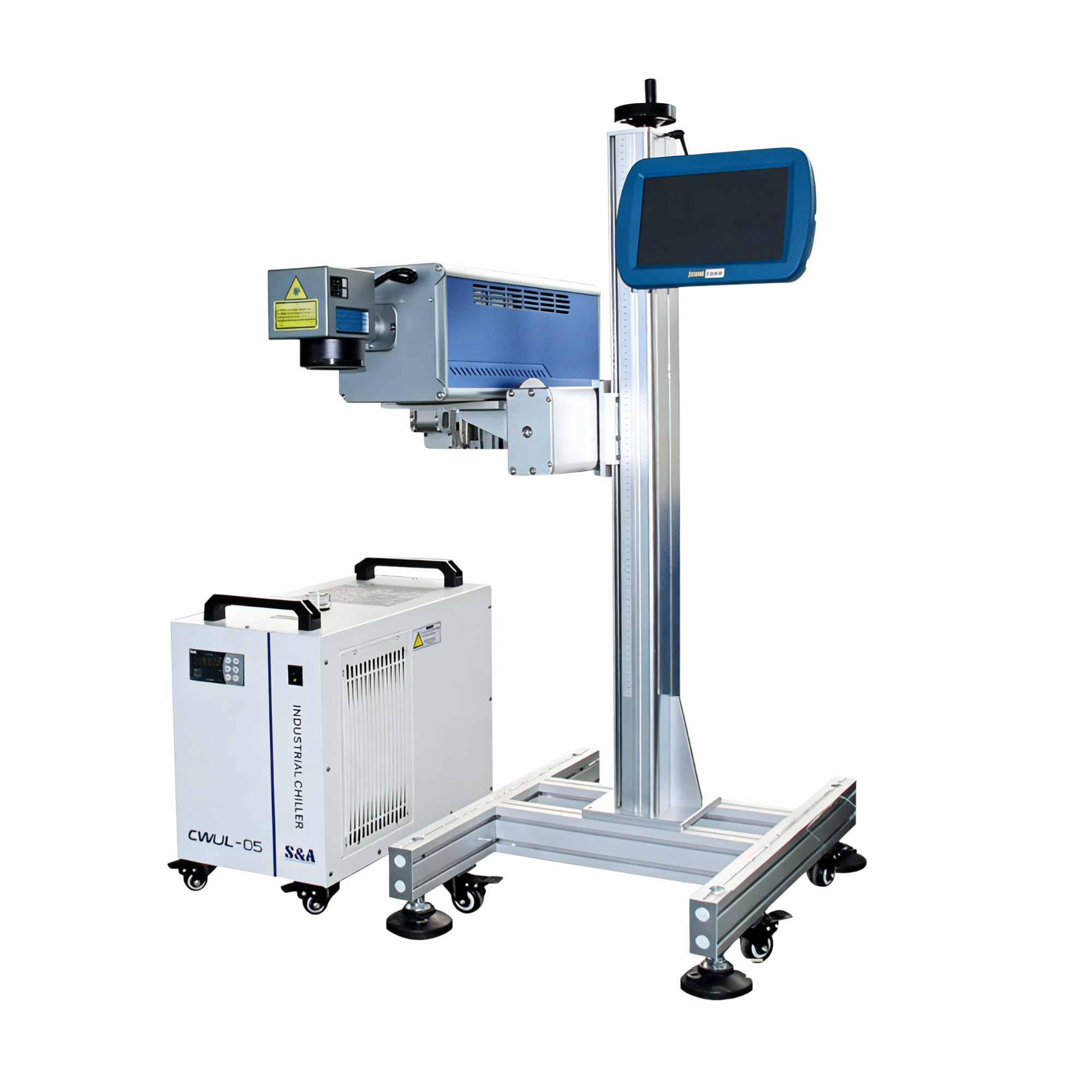

Fly UV Laser Marking Machine INNO 10W
$3,899.00
Fly UV laser marking machine use ultraviolet light, typically at a 355 nm wavelength, to mark or process materials. This wavelength, about a third of the typical fiber, allows the UV laser to do things that no other laser marker can. The shorter wavelength delivers significantly higher absorption and a much smaller beam spot. This allows for high contrast and damage-free marking on metals and plastics, as well as the ability to mark smaller or more precise parts. This makes it an ideal solution for heat-sensitive materials or parts requiring precision that typical fiber lasers cannot achieve.
WDOTMARK Fly UV Laser Marking Machine: Precision Marking for Sensitive Materials
The WDOTMARK Fly UV Laser Marking Machine is a specialized solution engineered for high-precision marking on delicate and heat-sensitive substrates. Utilizing advanced ultraviolet laser technology, it delivers ultra-fine, cold-process marks on materials such as glass, medical-grade plastics, electronics components, and cosmetic packaging. Its integrated “flying” marking capability enables seamless processing on moving products along production lines, making it particularly suitable for medical device manufacturing and high-end packaging applications.
Key Features and Benefits:
-
Cold Marking Technology
The UV laser operates with minimal heat transfer, creating crisp, high-contrast marks without thermal stress or surface distortion. This ensures the structural integrity of fragile materials remains intact, eliminating rework caused by warping or micro-cracks. -
Adjustable Marking Precision
Whether working with ultra-thin films or rigid polymer surfaces, the system offers precise control over marking depth and intensity. This adaptability guarantees exceptional detail for micro-text, serial numbers, barcodes, and intricate logos. -
Seamless High-Speed Integration
Designed for dynamic production environments, the WDOTMARK Fly UV system maintains pinpoint accuracy even at elevated line speeds. Its real-time marking capability supports continuous workflows without bottlenecks. -
Energy-Efficient and Space-Saving
Featuring low power consumption, this machine reduces operational expenses while delivering consistent performance. Its compact, streamlined footprint integrates easily into space-constrained production layouts. -
Versatile and Compliant
Ideal for applications requiring strict precision standards—from medical components to luxury cosmetics—the WDOTMARK Flying UV system meets industry certifications and delivers reliable, repeatable results across diverse sensitive materials.
Conclusion
By combining finesse with high-speed efficiency, the WDOTMARK Flying UV Laser Marking Machine offers an advanced solution for manufacturers seeking damage-free, high-resolution marking on delicate products. Trust WDOTMARK to bring precision and reliability to your most demanding marking applications.
Parameter
| Parameter model | YT-U5，YT-U10，YT-U15，YT-U20 | ||
| Machine material | All aluminum sandblasting oxidation | ||
| Laser | INNO-355, The service life is more than 20000-30000 hours， | ||
| Laser wavelength | 355nm | ||
| Output power | 5W，10W，15W，20W | ||
| Marking speed | ≤12000mm/s | ||
| Controller | 10.2 inch touch controller | ||
| Cooling system | Water cooling (with chiller) | ||
| Focus lens | 210mm | ||
| Minimum linewidth | 0.01mm | ||
| Repetitionaccuracy | 0.001mm | ||
| Marking range | 110mm×110mm(optinal) | ||
| Positioning mode | Dual red light focusing indicator | ||
| Number of rows | Any line within the marking range | ||
| Production line speed | 0~130m/min(depending on the material) | ||
| Multilingual | English,Spanish,German,Chinese,Russian,Arabic,etc | ||
| Jurisdiction | Multi user management authority | ||
| Operating system | Linux system | ||
| Inkjet mode | Static,analog,encoder | ||
| Reserved signal | Start,print status,finish,fault | ||
| Data protection | With power failure data protection energy | ||
| Monitor | Provide overspeed alarm function | ||
| De crossing | Automatic removal of intersections | ||
| Coding software | Single and double machine code sending | ||
| Typeface | Chinese and English,numbers,traditional,etc | ||
| File format | BMP/DXF/HPGLJPEG/PLT | ||
| Bar code | CODE39,CODE128,CODE126,QR | ||
| Power Supply | 110V/220V,50/60HZ | ||
| Power consumption | 800W | ||
| Requirement | External temperature 0℃-45℃; humiditys95% | ||
| Applications | Metal，Aluminum，Stainless，Steel，Copper，PP，PVC，HDPE，Plastics，Resin，Paperboard，Film，Foils，Rubber，Wood | ||
| HS Code | 8456110090 | ||
| Package Size | Bracket: 134*36*28 cm + Machine：78*36*33cm+ Chiller：68*40*58cm | ||
| Package Gross Weight | 90kg | ||
| Warranty Period | Two Years， not including galvanometer | ||
| Package List | ① Bracket② Touch Screen③ Laser Host④ Chiller⑤ Cable⑥ Photocell Sensor⑦ Encoder⑧ Toole Kit | ||
Applications
It is particularly suitable for the high-end market of ultra-fine processing, surface marking of packaging bottles of polymer materials such as cosmetics, medicines, and foods, with fine effect, clear and firm marking, better than ink coding and pollution-free; marking of flexible PCB; micro-hole and blind hole processing of silicon wafers; marking of two-dimensional codes on LCD glass, surface marking of glassware, marking of metal surface coatings, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
5W UV Laser and 10W UV Laser, How to Choose?
· 5w: Multi-purpose high performance solutions for high speed production lines.
· 10w: Robust solution for applications requiring high speed and depth. It can be used for engraving.
Why Choose UV Laser Marking Machine?
Manufacturers across the globe use UV laser marking due to its precision and ability to work on sensitive materials. The shorter wavelength (often 355 nm) allows UV lasers to create detailed, high-contrast marks on materials like plastics, ceramics, and glass without causing heat damage. Using a UV laser marking machine allows for minimal material alteration, which is especially important for marking items like microchips or delicate medical devices.
UV laser markers are the best option for marking materials that reflect longer wavelengths when compared to other laser technologies. They excel at creating clear, high-contrast marks on transparent or highly reflective surfaces. In contrast, other lasers, such as infrared or CO2, struggle to achieve the same level of precision without causing damage.
The precision offered by UV laser technology also ensures that barcodes, logos, and detailed product information can be clearly marked, even on the smallest components. One final reason UV lasers are often chosen is that they operate at higher speeds. Production efficiency, while maintaining the quality and durability of the markings, is easier to achieve.
