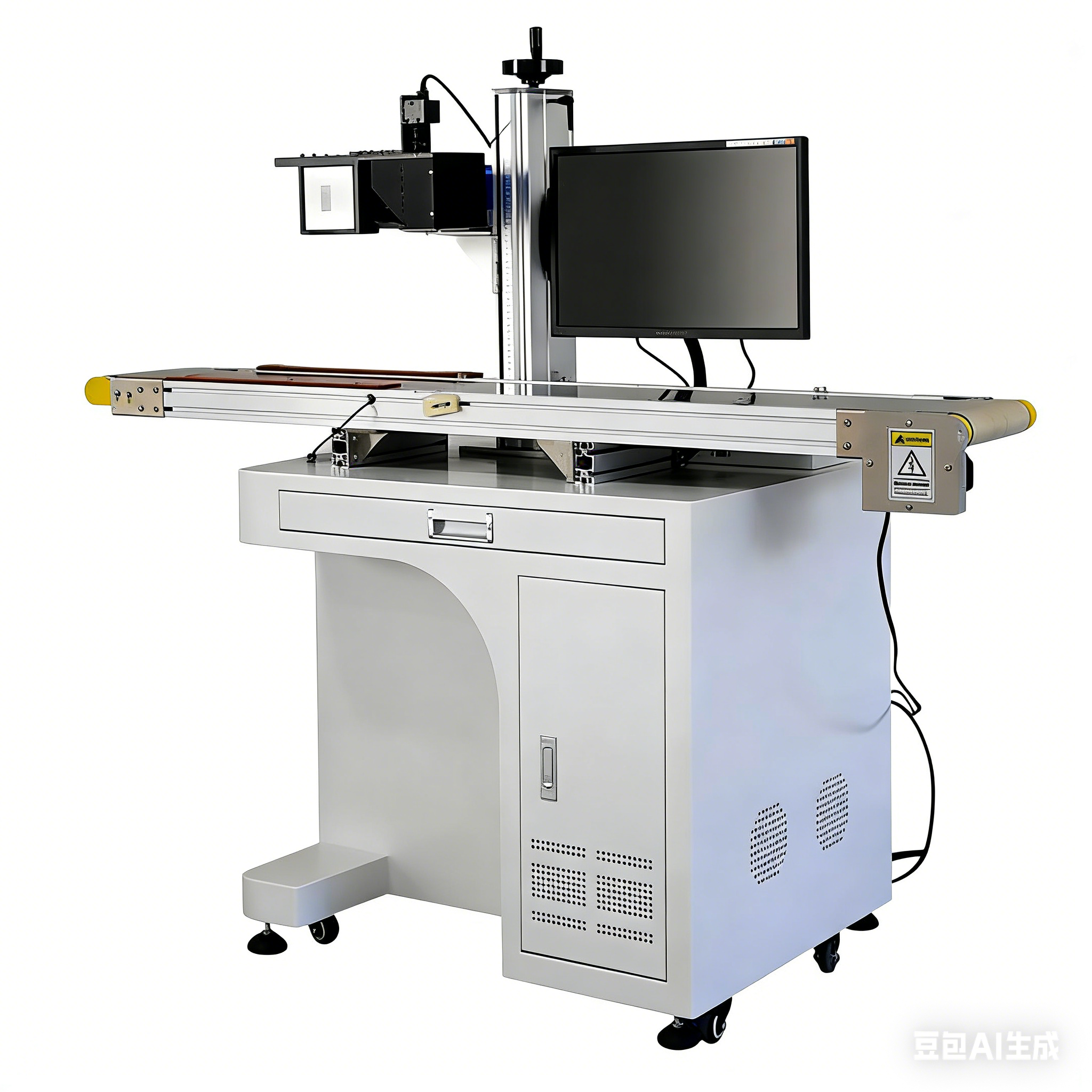

CCD Fiber Laser Marking Machine MAX 30W

$3,899.00

CCD Vision Positioning System

The CCD Visual Marking Machine is a high-precision device for industrial marking, featuring an integrated CCD vision system for automatic target alignment and error reduction. It excels on small or irregular parts and supports materials like metal, plastic, and glass with durable, high-quality results.

Key advantages include fast marking speed ideal for high-volume lines, a user-friendly interface for quick setup, and real-time positioning that ensures accuracy despite minor shifts in workpieces. Low maintenance and a robust design reduce long-term costs and ensure stable performance in harsh environments.

Ideal for serial numbers, logos, and QR codes, it meets strict industry standards, making it a reliable and precise solution for diverse industrial applications.

CCD Vision Positioning System: Precision for Industrial Marking

Product advantages:

  •  High Precision and Excellent Results:
    Equipped with an “intelligent eye,” the machine automatically locates the marking position accurately, even on complex-shaped products. The engraved text and patterns are extremely fine and clear, durable and non-fading, giving products a high-end appearance.
  • Fast Speed and Automatic Alignment:
    No need for manual alignment; the machine automatically recognizes product orientation and marks quickly. It is much faster than traditional methods, especially suitable for large-scale, long-duration continuous production in factories.
  • High Flexibility and Versatility:
    Easily marks various materials such as metals and plastics. It can handle complex patterns, QR codes, barcodes, serial numbers, etc., meeting diverse needs including product traceability.
  • Cost-Effective and Economical:
    Although the initial investment may be higher, there are no consumables like ink, and maintenance is simple. In the long run, production costs are significantly reduced, saving money for the enterprise.
  • Safe, Eco-Friendly, and Non-Contact:
    The marking process does not contact the product surface, avoiding damage. No chemical inks are used, so there is no pollution, making it safe for operators and environmentally friendly.
Product Parameter
Model T-F20,T-F30,T-F50,T-F70,T-F100
Laser power 20W/30W/50W/70W/100W
Marking area 110*110mm (optional)
CCD visual range 120mm  (130 mega-pixels/500 mega-pixels (optional) +1.5 m conveyor)
Laser wavelength 1064nm
Working accuracy 0.002mm
Marking Depth 0-0.5mm
Minimum font for marking 0.15mm
Minimum character 0.2mm
Marking speed 0-7000mm/s
Operating system Win7 and Win10/32 bit and 64 bit
Laser source MAX   (Raycus can be choose)
Repetition frequency 20-100KHz
Cooling mode Air Cooling
Graphic format supported AI, PLT, DXF, BMP, DST, DWG, DXP
Environmental requirements Temperature: 10-35 ℃ ,Humidity: 5-75%
Working voltage 220V 110V, 50/60 Hz
Applicable material All metal (Stainless steel, Carbon steel, Brass, etc.) and some plastic (ABS, PVC, PES, ETC.)
Optional Accessories to Purchase D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture
Net weight/gross weight (KG) 140KG / 168KG
Machine dimension 800*750*16500mm (L*W*H)
HS Code 8456110090
